Bridge Vertex

Bridges two Vertices that can be G0/G1/G2/G3 continuous. Tension is adjustable.

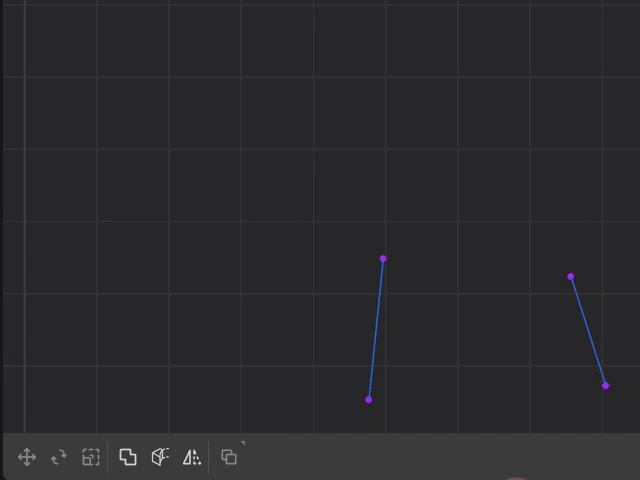

1. Select two Vertices you want to bridge.
2. Use the Bridge command in the Command Palette.
3. Set the options in the Command Dialog and Keyboard Shortcuts.
   • T:
     • Value 1/2: The relative position on the segment of the starting point/ending point.
   • Direction:
     • Direction 1/2: Reverse the direction of the starting point/ending point.
   • Tension 1:
     • Value 1/2: The tension value affected 1st CV to 3rd CV of the starting point/ending point.
   • Tension 2:
     • Value 1/2: The tension value affected 2nd CV and 3rd CV of the starting point/ending point.
   • Tension 3:
     • Value 1/2: The tension value affected 3rd CV of the starting point/ending point.
   • Start curvature:
     • G0, G1, G2, G3: Specify the continuity of the Curve at the starting point.
   • End curvature:
     • G0, G1, G2, G3: Specify the continuity of the Curve at the ending point.
   • Trim: When turned on, any Curve that extends beyond the bridge will be trimmed.
4. Confirm with OK in the Command Dialog or right-click.
